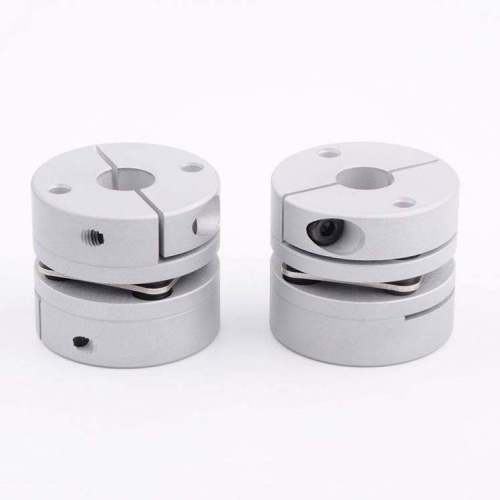

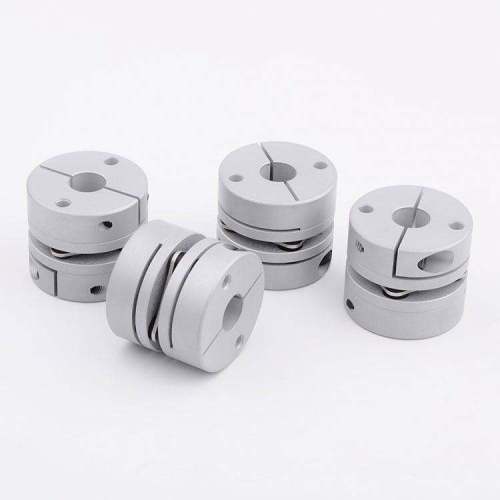

Flexible Couplings Double Diaphragms Clamp Disc Coupling

Flexible Couplings Double Diaphragms Clamp Disc Coupling

$5.55-25.65 /Piece/Pieces

Contact Now

Payment Type: T/T
Incoterm: CFR,FOB,CIF,EXW,FAS,FCA
Min. Order: 1 Piece/Pieces

Description

Product Attributes

Support Customization: Oem

Structure: Disc

Rigid Or Elastic: Flexible

Is It A Standard Part: Standard

Material: Steel, Aluminium

Packaging & Delivery

Selling Units:	Piece/Pieces

Supply Ability & Additional Information

Payment Type: T/T

Incoterm: CFR,FOB,CIF,EXW,FAS,FCA

Product Description

Characteristics of diaphragm coupling

1. The ability to compensate for misalignment of two axes is strong, and compared with gear couplings, the angular displacement can be doubled. When there is radial displacement, the reaction force is small, and the flexibility is large, allowing for certain axial, radial, and angular displacements.

2. Has obvious shock absorption effect, no noise, and no wear.

3. Adapt to working in high temperatures (-80+300) and harsh environments, and be able to operate safely under conditions of impact and vibration.

4. The transmission efficiency is high, reaching 99.86%. Especially suitable for medium and high-speed high-Power Transmission.

5. Simple structure, light weight, small volume, and easy assembly and disassembly. It can be assembled and disassembled without moving the machine (referring to the type with intermediate shaft), and does not require lubrication.

6. Can accurately transmit speed, operate without slip, and can be used for transmission of precision Machinery

Application scope of diaphragm coupling

Widely used for shaft transmission of various mechanical devices, such as water pumps (especially high-power and chemical pumps), fans, compressors, hydraulic machinery, petroleum machinery, printing machinery, textile machinery, chemical machinery, mining machinery, metallurgical machinery, aviation (helicopters), high-speed power transmission systems for ships, steam turbines, piston power mechanical transmission systems, tracked vehicles, and high-speed and high-power mechanical transmission systems for generator sets. After dynamic balancing, it has been widely applied to high-speed transmission shaft systems
