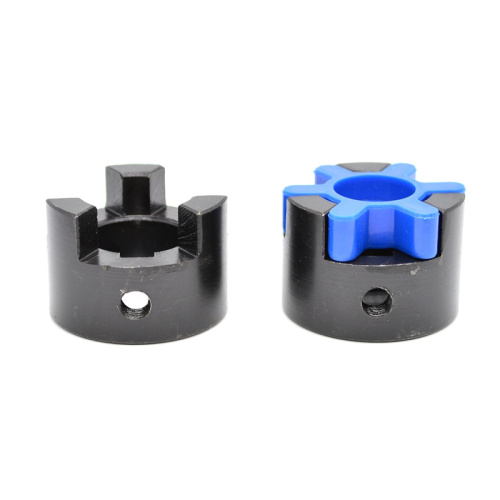

Cast Iron L070 Flexible Shaft Couplings Jaw Coupling

Cast Iron L070 Flexible Shaft Couplings Jaw Coupling

$5-35 /Set/Sets

Contact Now

Payment Type: T/T
Incoterm: CFR,FOB,CIF,EXW,FAS,FCA,CPT
Min. Order: 1 Set/Sets
Transportation: Ocean,Land,Air,Express
Port: SHANGHAI

Description

Product Attributes

Applicable Industry: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory, Farms, Retail, Energy &Amp; Mining, Construction Works

Support Customization: Oem

Structure: Jaw / Spider

Rigid Or Elastic: Flexible

Is It A Standard Part: Standard

Material: Steel

Place Of Origin: China

Packaging & Delivery

Selling Units:	Set/Sets
Package Type:	CARTON
Picture Example:

Supply Ability & Additional Information

Packaging: CARTON

Transportation: Ocean,Land,Air,Express

Supply Ability: 1000SETS/MONTH

Port: SHANGHAI

Payment Type: T/T

Incoterm: CFR,FOB,CIF,EXW,FAS,FCA,CPT

Product Description

The Flexible Shaft Coupling contains an elastic compound of pre pressed rubber, which can provide additional strength and extend its service life. This coupling can accomodate all types of deviations. The wheel hub material is high-strength aluminum alloy, which is both lightweight and corrosion-resistant. The rubber component is mainly used for shock absorption, making Power Transmission smooth and quiet, thereby protecting the driving force and driving machines.

Product Features

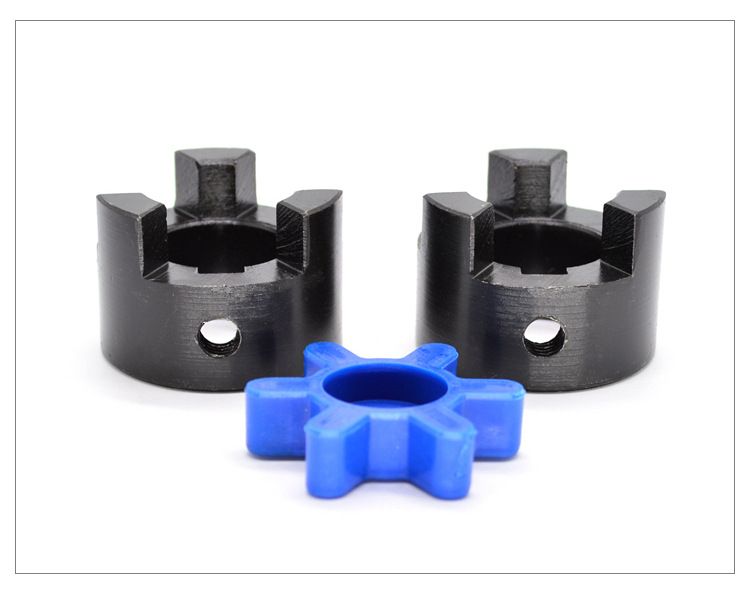

1)Torsionally flexible, vibration-damping jaw coupling / Elastomer Coupling with split hubs (drop-out center design coupling)

2)Easy assembly/disassembly via four screws only

3)Type with cylindrical bore and without feather keyway

4)Hubs made of steel

5)Axial plug-in

6)Replacement of spider without displacing driving and driven side

7)Positive-locking and frictionally engaged hub connection

8)Axial, radial, angular compensation

9)Radially dismountable, easy to service

10)Maintenance-free

11)Complying with ATEX (according to EU directive 2014/34/EU)

Application fields of flexible couplings

Elastic couplings are widely used in various fields, including industrial production, automotive manufacturing, oil drilling, marine engineering, and shipbuilding. ‌

industrial production

In industrial production, elastic couplings are widely used in various machines and equipment, such as transmission devices, compressors, pumps, and generators. In addition, elastic couplings are widely used in various heavy equipment industries such as steel, chemical, and mining.

Automobile manufacturing

Elastic couplings also have important applications in the field of automotive manufacturing, mainly used in parts such as engines, transmissions, and driveshafts.

Oil drilling, offshore engineering, and shipbuilding

Elastic couplings have good adaptability and reliability in fields such as oil drilling, marine engineering, and shipbuilding.
