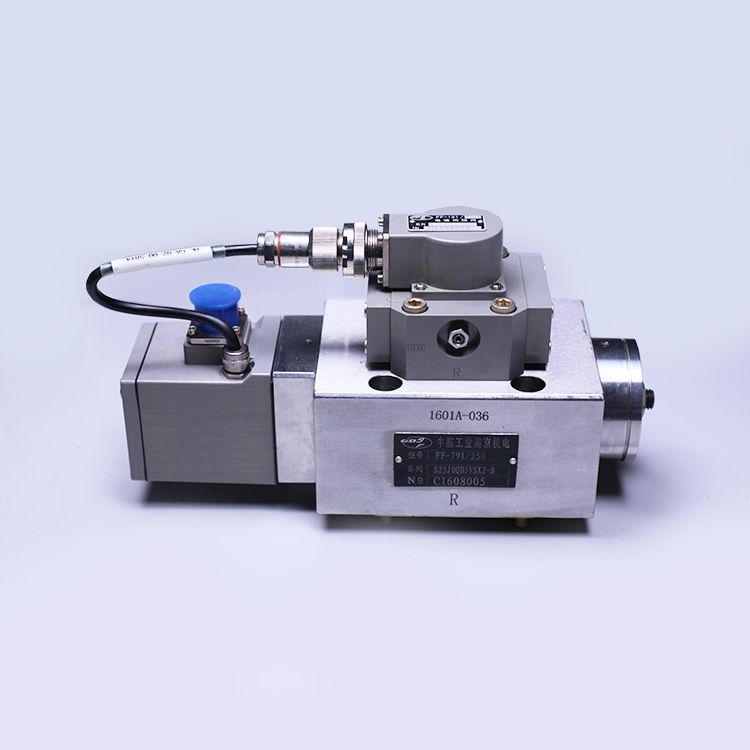

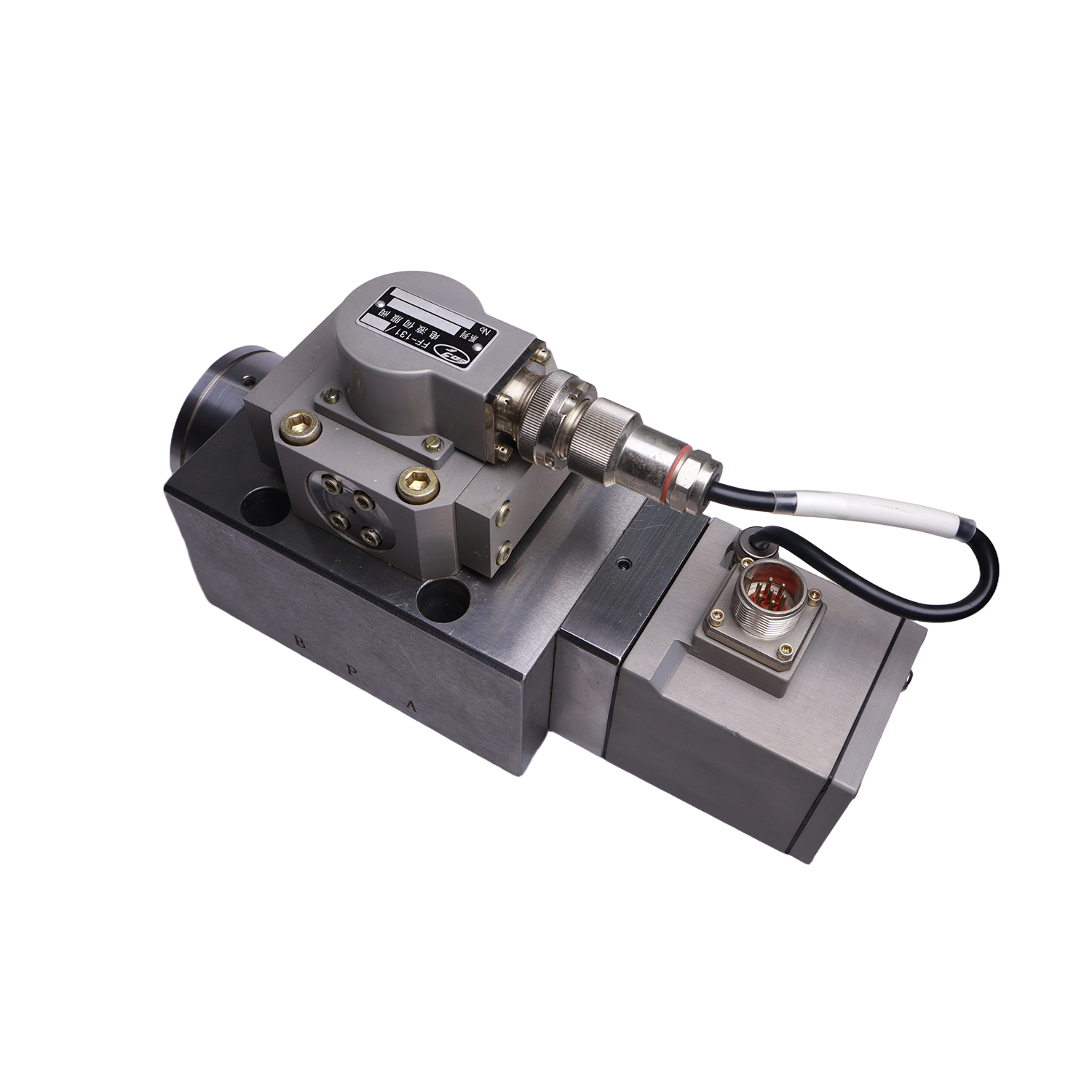

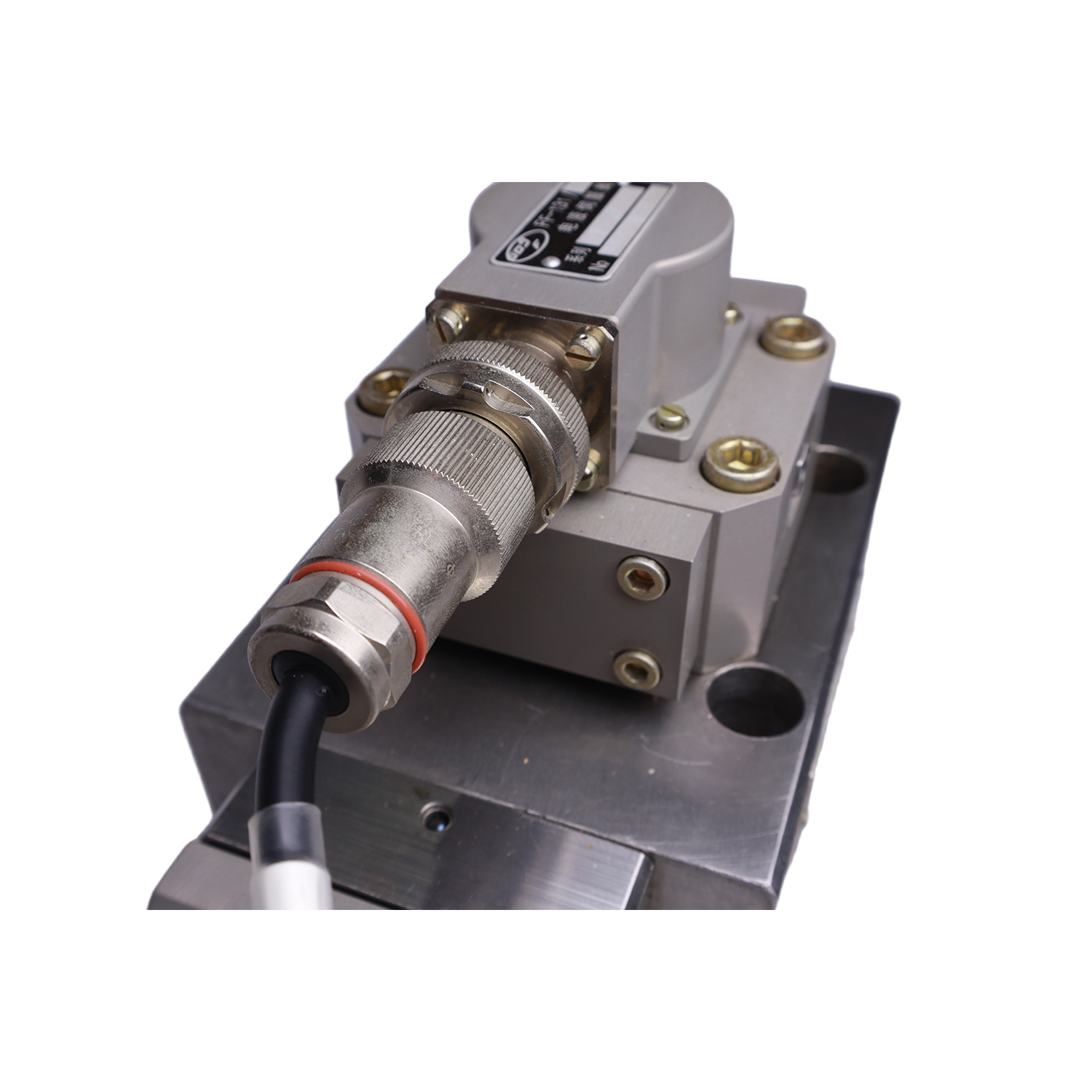

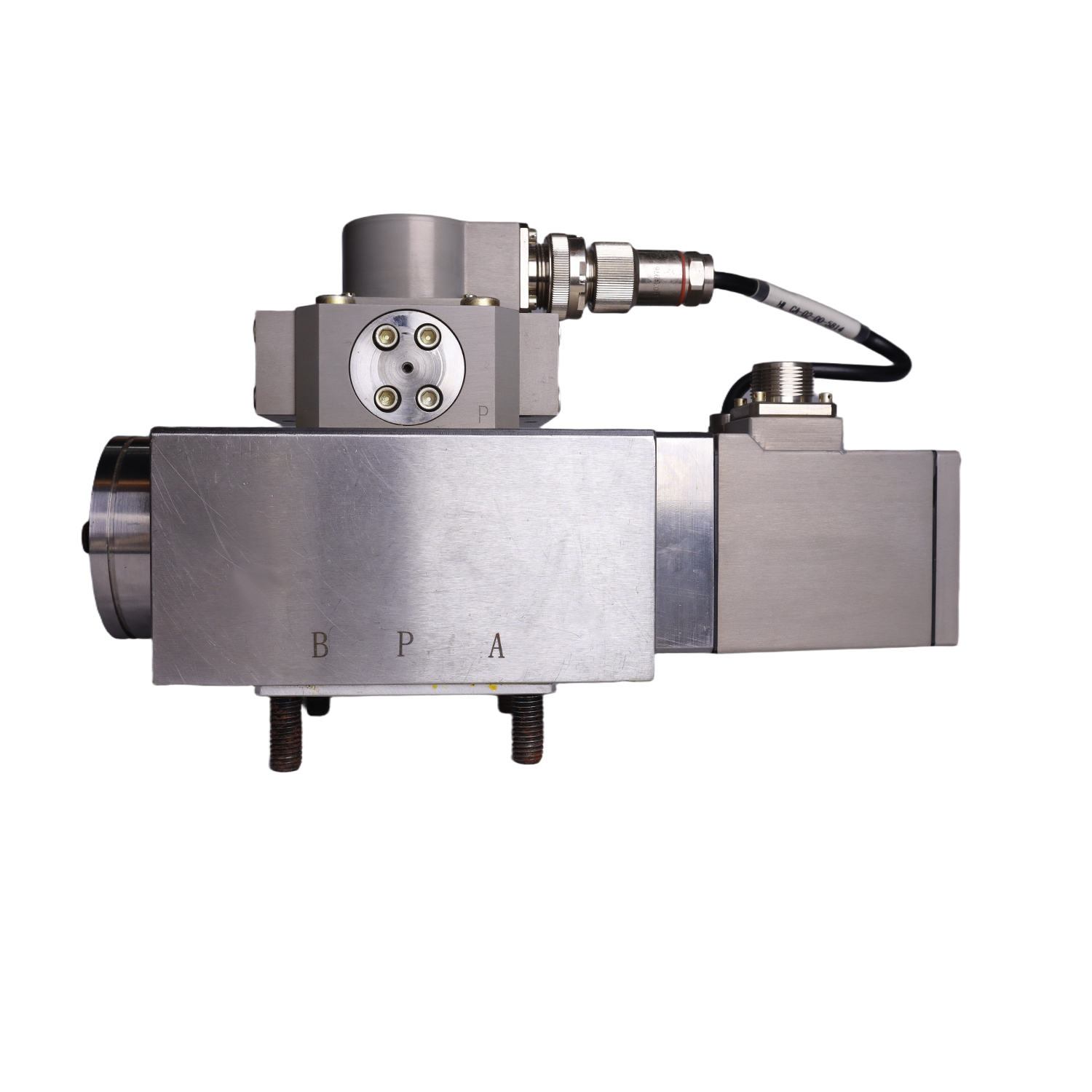

Electro Hydraulic Control Valves Servo Valve

$1650-2580 /Set/Sets

Contact Now

Payment Type: T/T
Incoterm: FCA,FAS,EXW,CIF,CFR,FOB
Min. Order: 1 Set/Sets
Transportation: Ocean,Land,Air,Express
Port: Shanghai

Description

Product Attributes

Certification: Reach

Support Customization: Oem

Flow Medium: Oil

Structure: Control

Packaging & Delivery

Selling Units:	Set/Sets

Supply Ability & Additional Information

Transportation: Ocean,Land,Air,Express

Port: Shanghai

Payment Type: T/T

Incoterm: FCA,FAS,EXW,CIF,CFR,FOB

Product Description

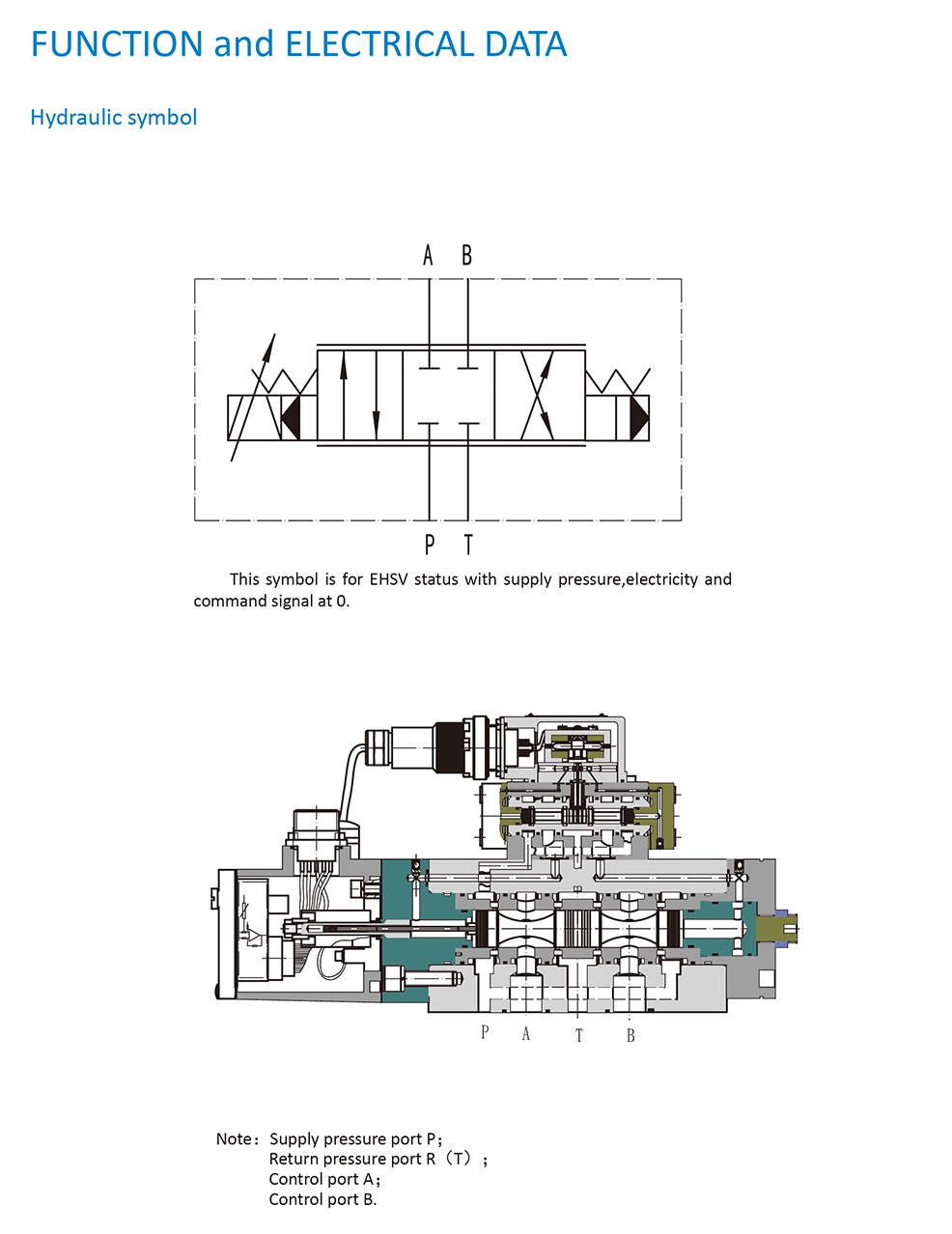

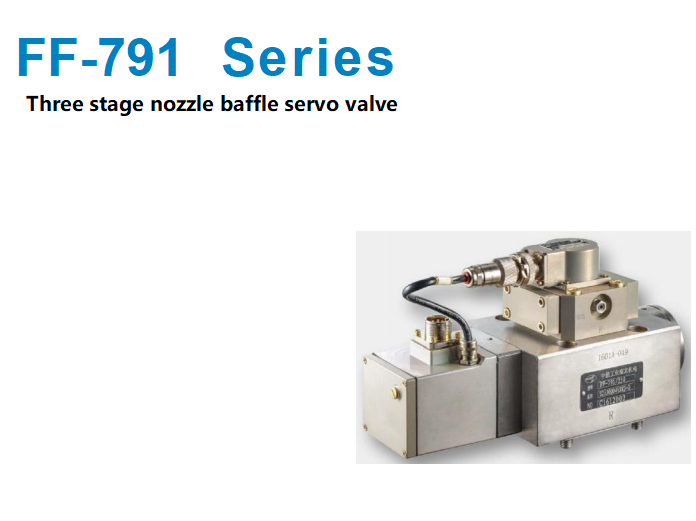

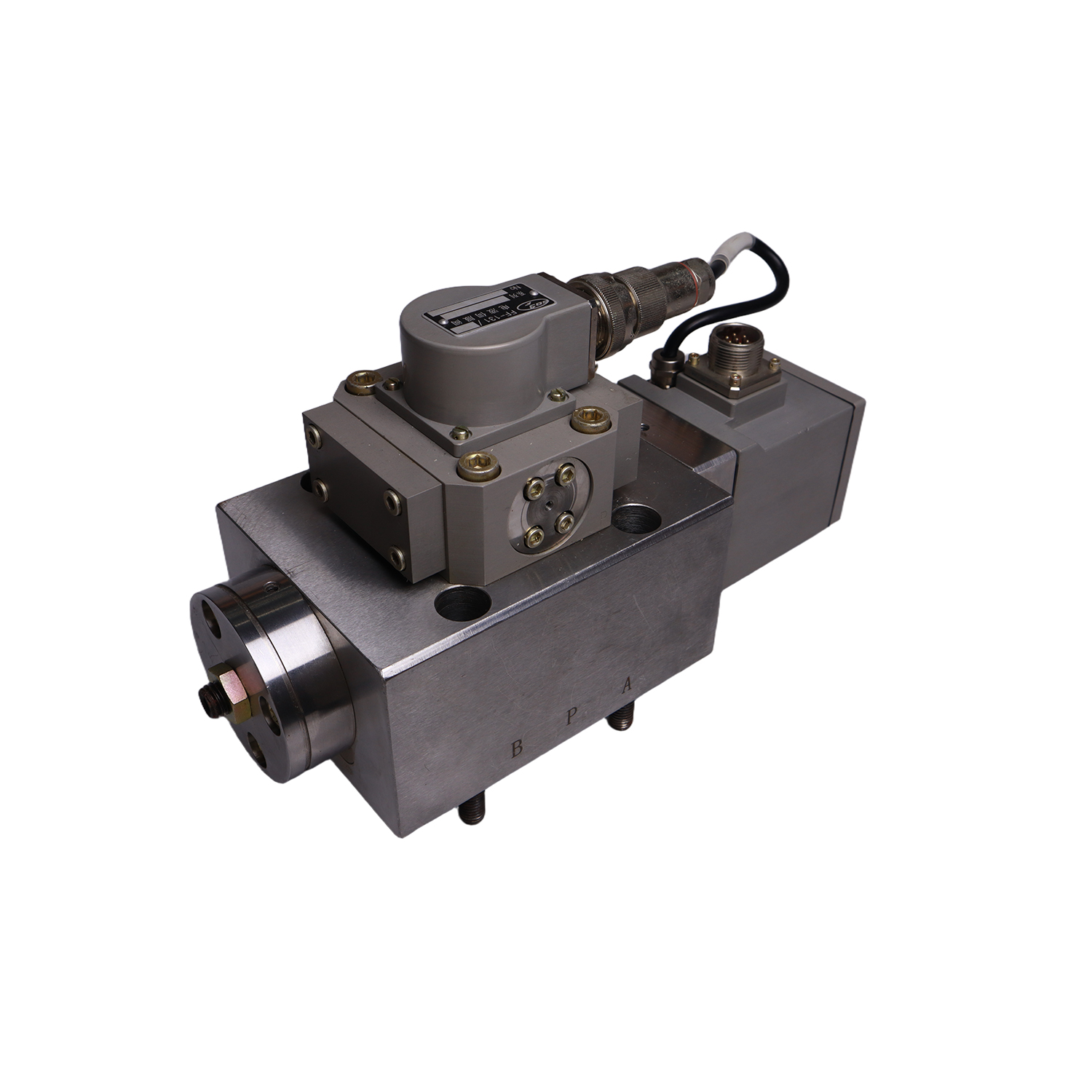

The FF-791 series electro-Hydraulic Servo Valve is an electric feedback three-stage nozzle baffle high flow Servo Valve. This type of servo valve uses a two-stage dual nozzle baffle servo valve as the pilot valve, with fast response and high dynamic performance. The LVDT valve core position sensor is used internally for position closed-loop control, resulting in small hysteresis, high resolution, and good repeatability accuracy. Compared to two-stage jet tube high flow servo valves, its dynamic response is higher. This series of three-stage servo valves features both high flow rate and high dynamic response.
